Dust Collectors

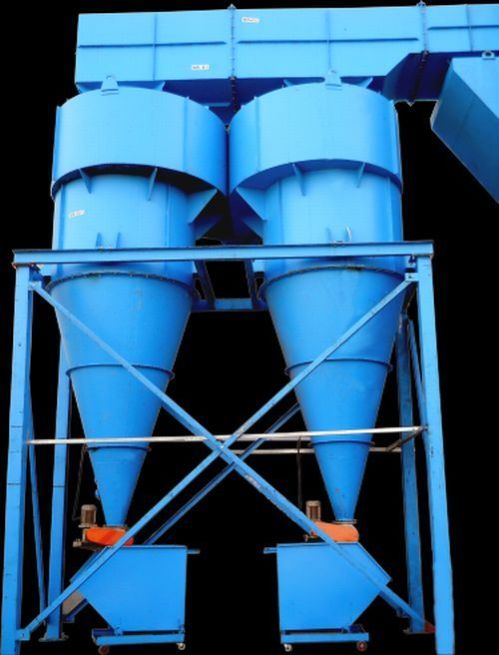

WORKING PRINCIPLE: Mechanical dust collectors, like cyclone separators, utilize centrifugal, gravitational, and inertial forces to separate dust particles from air or gas streams, typically handling coarse and heavy particles.

FEATURES: Separates heavy dust particles with lower power consumption in Blower Power and results in lesser load on Bag Filter / Dust Collector. High Separation Efficiency with Special Inlet Design. Separation Efficiency possible upto 98% for Powders. Low Operating Pressure Drops A cyclone dust collector machine frequently serves as a low-cost and low-maintenance stand-alone dust collector. They have the advantage of being quickly cleaned to accept the next product batch eliminating the need to clean any remaining lines from bag filters which is a time-consuming and tedious process. With a dual-stage dust collection system, the cyclone dust collection system is equipped to handle both coarse particles as well as fine dust.

MOC: Mild Steel & Stainless Steel

APPLICATIONS: Primary Separator for Dust Collector, Spark Trapper, Particle Board Plants, Boiler Flue Gas, Dryer Exhaust, Kiln Exhaust, Buffing Machines, Cement Plants, Fly Ash Handling Plants, Shot Blasting, Wood Chips Conveying, Furnace Fume Extraction System, Etc.

1. PULSE JET CARTRIDGE TYPE DUST COLLECTOR / BAG FILTER

WORKING PRINCIPLE: Pulse jet cartridge type dust collectors, or bag filters, work by trapping dust particles on filter bags or cartridges, then using short bursts of compressed air to dislodge the accumulated dust, which then falls into a collection hopper.

FEATURES: Basically used for applications with normal temperature range and free flowing dust or materials. Minimum Floor Space Requirement. Low height front loading of Cartridge removal & Insertion. Low Pressure Drop in comparison with Hose bag Type Bag Filters. Variety of Fabrics suitable for various applications. Options for Discharge Devices. Taylor made Work Station / Work Bench is also design and provided with DCS. Supplied in Ready to Start conditions.

Capacity : Modular Design Available up to 1,00,000 CMH.

MOC : Mild Steel & Stainless Steel

APPLICATIONS:Sand Blasting, Shot Blasting, Mineral Grinding, Pigments & Chemicals, Polymers, Ceramics, Grinding & Polishing, Abrasive Mfg.

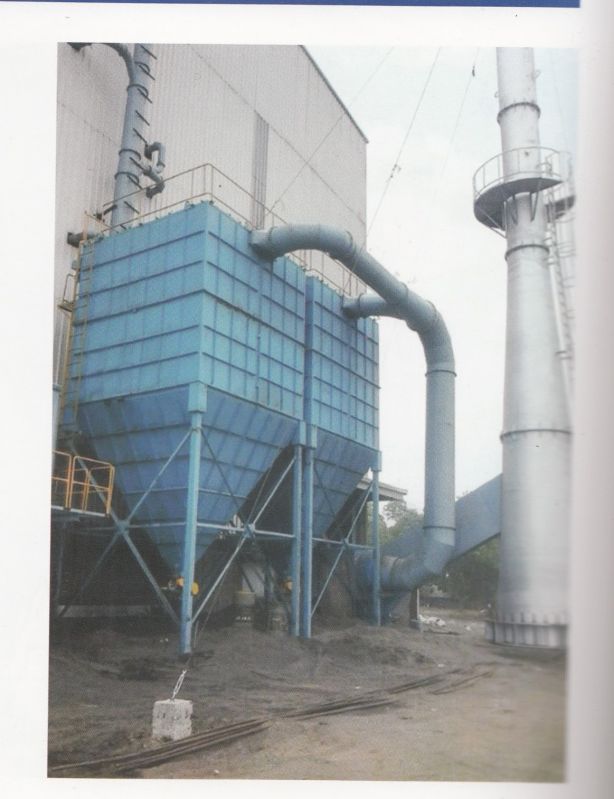

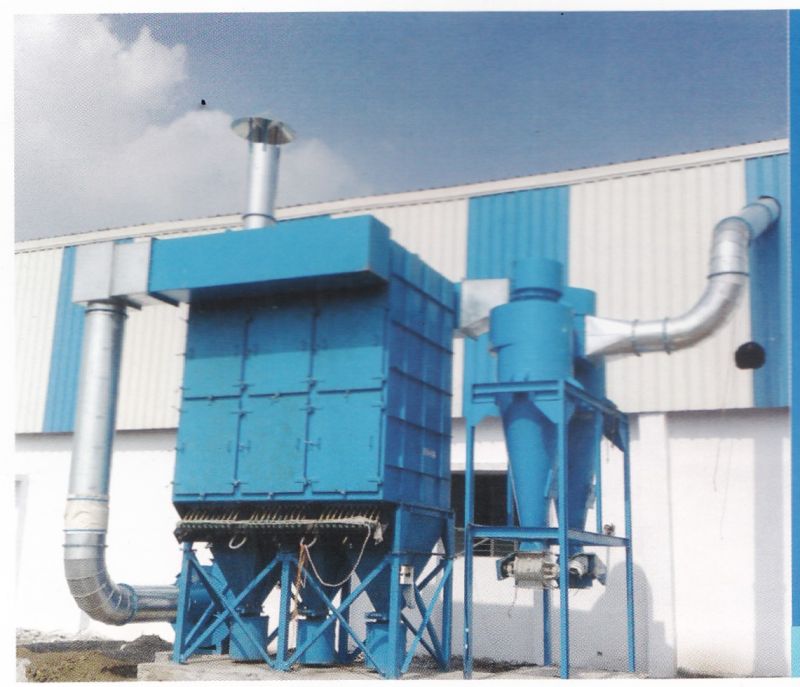

WORKING PRINCIPLE: Pulse Jet Hose Bag Type Filters / Pulse Jet Bag Filter are known as conventional filters. A Pulse Jet Envelope Type Bag Filter/Cassette Type Dust Collector works by filtering dust-laden air through bags, accumulating dust on the outer surface, and then using short bursts of compressed air (pulses) to dislodge the dust, which then falls into a collection hopper.

FEATURES: Basically used for applications where there is height constraint or front loading of filter elements are required. This design works very well for the critical powder handling, product recovery and for all other general purpose application. Downdraft Airflow Direction for Best Dust Separation At Inlet. Continuous Duty Operation. Lower Pressure Drop in Comparison with Hose Bag Type Bag Filters. Options for Discharge Devices. Reverse Air Cleaned Envelope Type Bag filters are also offered of Higher Capacities for Foundries and other applications.

Capacity : Modular Design Available up to 1,00,000 CMH.

MOC : Available in Mild Steel & Stainless Steel

APPLICATION:  Pulse jet envelope (or cassette) type bag filters, are widely used for removing particulate matter from industrial exhaust gases and are effective in industries like cement, steel, power generation, and chemical processing.

WORKING PRINCIPLE: A motorized shaker dust collector, a type of baghouse system, uses a motor to shake filter bags, dislodging trapped dust particles into a collection bin, ensuring efficient and continuous dust removal from industrial processes.

FEATURES: Basically used for applications where there is heavier dust particles (Wood, Granule, Metal Dust). Sturdy Construction with Compact Design and Ease of Maintenance. No Compressed Air required. Silent but Efficient Operation. Shipped in Plug & Play Conditions.

MOC: Mild Steel & Stainless Steel

APPLICATION: Drilling, Mixing, Grinding, Abrasive Blast, Transfer Points, Cutting, Food Packing, Polishing, Shot Blasting.
