Submersible Sewage Pumps

With us, clients can stay rest assured for the security of the payment. For the convenience of the clients, we accept cash payments along with bank transfers. Buyers can contact us all year round for purchasing reliable Centrifugal Monoblock Pumpset at market leading prices.

We are backed by a team of quality controllers who make sure that the offered lot is in complete conformity with the quality standards. We are actively engaged in supplying exemplary range of products from our ultramodern warehousing facility in Vadodara(India).

Our Horizontal Monoset Submersible Pumps have the maximum capacity up to 5000 LPM. The power capacity of these pumps is up to 30 HP and discharge of 400 LPM to 4000 LPM.

FEATURES: Wide variation, Plug and play, Comes with control box, Very Durable and long life

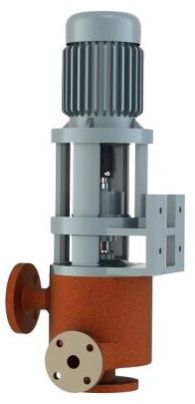

1. Vertical Glandless Pumps

WORKING PRINCIPLE:Vertical Glandless Pumps have a similar hydraulic design as the centrifugal conventional pump, with the difference that it is designed in the vertical position. Liquid from the suction line passes through the impeller to the discharge line with the required flow and head/pressure, while the excess liquid enters the rear plate cover and is diverted back to the mother tank through overflow outlet arrangements. Hence, the design offers a complete solution to gland-related issues. The motor assembly is also protected against damages due to leakage of liquid. Glandless pumps ensure excellent performance while handling corrosive and hazardous chemicals.

FEATURES: No maintenance, since the pump can even run dry as there are no packing or no mechanical seal. Reduction of downtime as well as production losses. All wetted parts in solid moulded construction, in order to withstand corrosion and erosion. Semi-open type key-way impeller embedded withshaft sleeve used in our all-vertical pumps to suit both, clear and polluted fluids. These features eliminated reverse rotation issues. Pump mounted outside suction tank and not of submerged type. For easy maintenance, pump is coupled with motor, so motor can be dismantled easily.

MOC : Polypropylene (PP), PVDF, UHMW-PE, and other corrosion-resistant materials.

APPLICATIONS: Glandless pumps are extensively used in Pollution Control equipment as well as plants for Filtration, Waste Water Treatment, transferring Corrosive Chemicals, Slurries, Plating Bars, Sewage, Wet Gas Scrubbers, etc.

1. VERTICLE SUMP PUMPS / SUBMERGED PUMPS

WORKING PRINCIPLE:Vertical sump pumps, also known as submersible pumps, work by using a submerged impeller that rotates, creating centrifugal force to propel the liquid out of the sump and up a discharge pipe.

FEATURES: Self Priming, Space Economy and Simple Mounting Design. Vertical suspended with Closed and Semi Open Impeller Construction for Wet and Dry Pit applications.Non-metallic adapter with a flange having enough outlet passages, which does not allow the liquid to flow towards the mounting plate. Vapour seal fitted between motor and the pump, thereby protecting the motor from damages due to vapour. Casing can be rotated in any discharge direction, giving it installation flexibility. Semi-open impeller with volute type casing and contoured discharge is ergonomically designed to help achieve improved efficiency and reduced energy consumption.

APPLICATIONS: Small pit transfer, tank mounted pumps for small scrubbers, spraying applications, plating shops and pickling tanks. Handling Underground Tank Liquids, Acids, Alkalis, Dyes, Hydrocarbons, Corrosive Slurries, Marble and Granite Slurries, Fertilizers, Sugar Industry, Paper & Pulp Industry, Chemical & Petrochemicals Industry, Sludge & Waste Water, Effluent, Etc.
