| Business Type | Exporter, Supplier |
| Country of Origin | India |
| Capacity | 04 Lpm to 2000 Lpm |
| Head | 04 Meters to 80 Meters |
| Click to view more | |
Preferred Buyer From
| Location | India ( Gujarat only) & All other countries |
Product Details

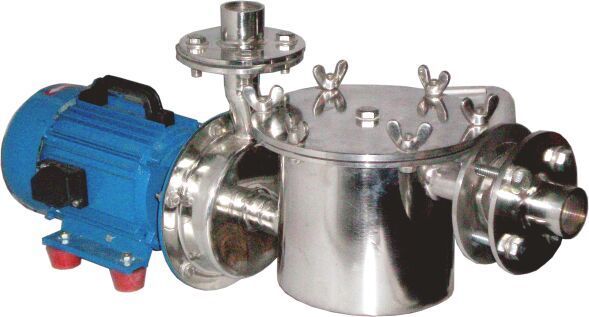

WORKING PRINCIPLE:A sanitary centrifugal pump, used in food and beverage processing, works by converting mechanical energy into kinetic energy, which then drives the fluid outward through a rotating impeller, creating a pressure difference that moves the fluid.
FEATURES: Minimum Working / Rotating parts made from Rolled Stainless Steel. Super Finish surface also ensure No Ingress or Emission of Germs or Impurities during Pumping or Idling which is basic requirement of Sterile / Hygienic application. Monoblock or Bare Pump with STD / Flame Proof Motor versions. Self-priming design with priming chamber version is also offered. Various type of End Connections
As all pumps are made from rolled stainless steel, mechanical properties are far superior then cast material.
• Pore free, non-pitting and non-adhering smoother surface, so less friction losses, and less service corrosion.
• Super finish surface also ensure no ingress or emission of germs or impurities during pumping or idling which is basic requirement of sterile hygienic application.
• Designed for CIP (clean in place) or manual cleaning
• Pumps are highly energy efficient and requires less NPSH to function without cavitation’s
• Pump can handle liquids having viscosities up to 1500 centipoises
• The pumps can work under a vacuum of 720 mm of Hg, suitable for vacuum evaporators.
• The best elastomers are used in the pumps to provide optimum resistance for high temperatures and chemicals.
• Pumps are available with open/semi open impellers.
• Minimum working / rotating parts
• Safe and quite operation levels.
• Gentle product handling with lower maintenance and down line cost.
• Dynamically combinations of seal faces as per customer’s requirement (single seal / double seal, seal external cooling)
• Suitable for standard motor or flange type or foot cum flange type motor or engine.
• Monobloc or bare pumps or with trolley.
• Also with flame proof Motors.
• Various types of connection like – triclove joints SMS, flanges or threaded nipple/coupling.
• Pumps with adjustable legs, available on request.
APPLICATIONS: Milk, Cream, Fruit Juice, Alcoholic Drinks, Soft Drinks, Vitamin Solutions, Sugar Syrup, Vegetable Oil, Mineral Oil, Acids, Fine Chemicals, Alkaline Solutions, RO Water, DM Water, Etc.
